08/16/07 13:08
Read: times


 		 #143338 - blinking LED wont blionk with schematics
Responding to: ???'s previous message
Salim C. Andraos said:
I'm using a DS89C450 sitting on a DS89C450-K00 eval board. I connected a LED and a resistor to P1.0 and hooked up pin 20 to ground. Then I wrote the following program and uploaded onto the chip.

led1 EQU P1.0

MOV R0, #255h

Start:
DJNZ R0, Loop ;using the R0 register as a pausing loop
CPL led1
MOV R0, #255h ;refill R0 to loop again
SJMP Start

Loop:
SJMP Start
END

The LED lights up, but it won't blink.



Thanks for the noob guide Andy. I needed that.
This is the schematic to the eval board (pages 7 - 12).
http://datasheets.maxim-ic.com/en/ds/DS8...50-K00.pdf

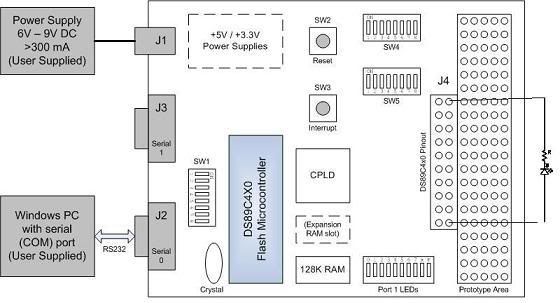

The eval board has 40 header pins (J4 on the board). Thats where i connected the LED as follows:

Photo Sharing and Video Hosting at Photobucket
Photo Sharing and Video Hosting at Photobucket
