 		 #155857 - But....
Responding to: ???'s previous message

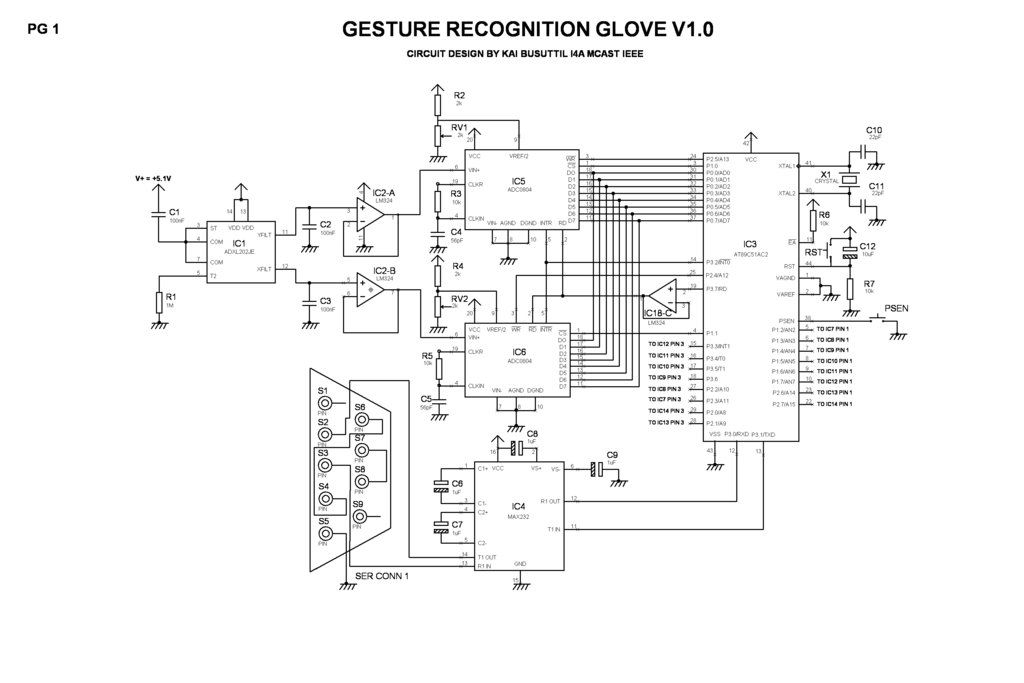

uh, can someone in the meantime check the circuit design I made. It should be all right (Checked all the pinouts). Should the 8051 work this way? Just take a look at the 8051, max232 and biasing comonents. this is a partial circuit. There are some extra components included (like the adc0804 and adxl202JE) but those have not yet been included in the circuit. Thanks in advance!

Regards,

Kai Busuttil

here's the link:

http://i283.photobucket.com/albums/kk...rg_pg1.jpg
