02/13/08 17:28
Read: times


 		 #150754 - is this ok?
Responding to: ???'s previous message
wow...quite a raging debate going on here...

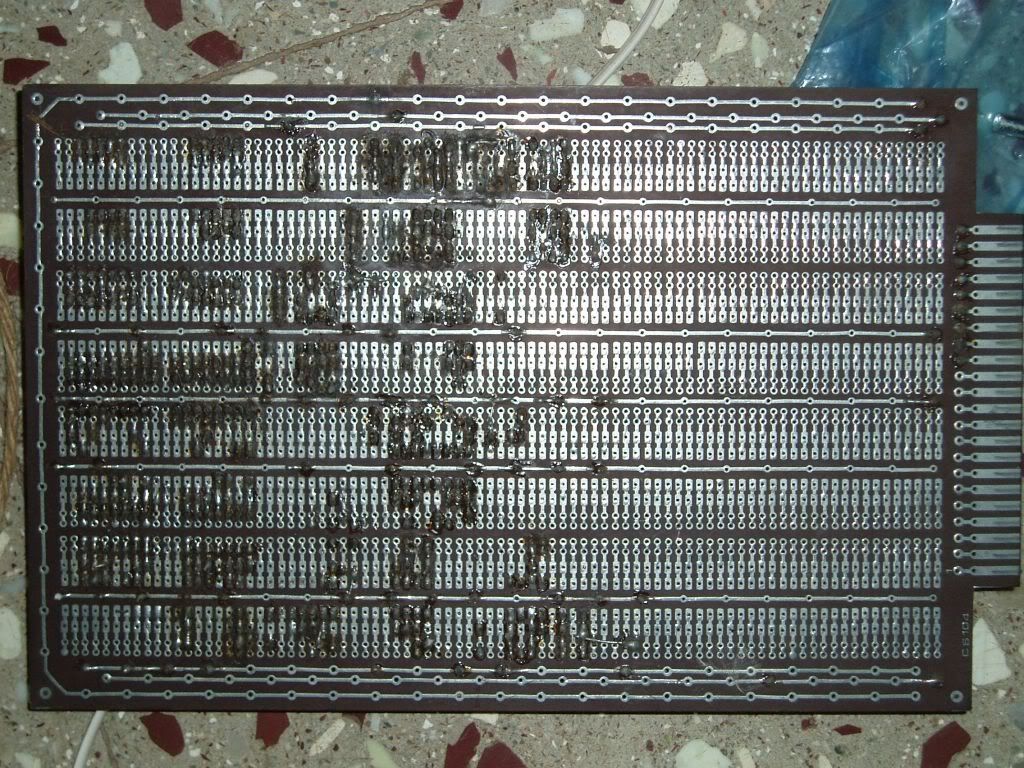

my old board somehow managed to bust my MCU :( i bought a new one, but didnt want to use the same board so i am building another one..however, things like multilayered boards are a real luxury in this part of the world and even if i could find one, i'm pretty sure i wouldnt be able to afford one... so i'm using a board that looks like this :

Photobucket

(thats an old one i happened to discover lying around recently)

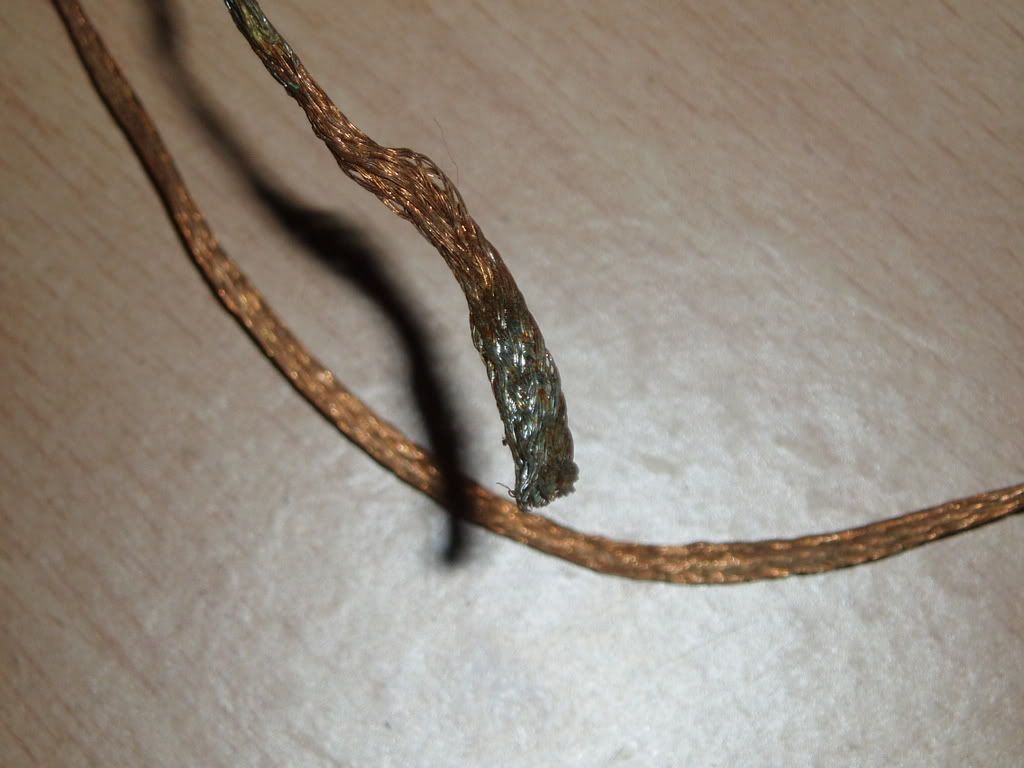

also, i found this strange looking woven wire:




Photobucket



should i use this wire for my vcc and ground wiring? or is a solid copper wire as suggested in previous posts better?
