11/15/07 21:18
Read: times


 		 #147032 - Why? You want to make fun of it? :)
Responding to: ???'s previous message
...and we can give you some hints,

Thanks for your offer.

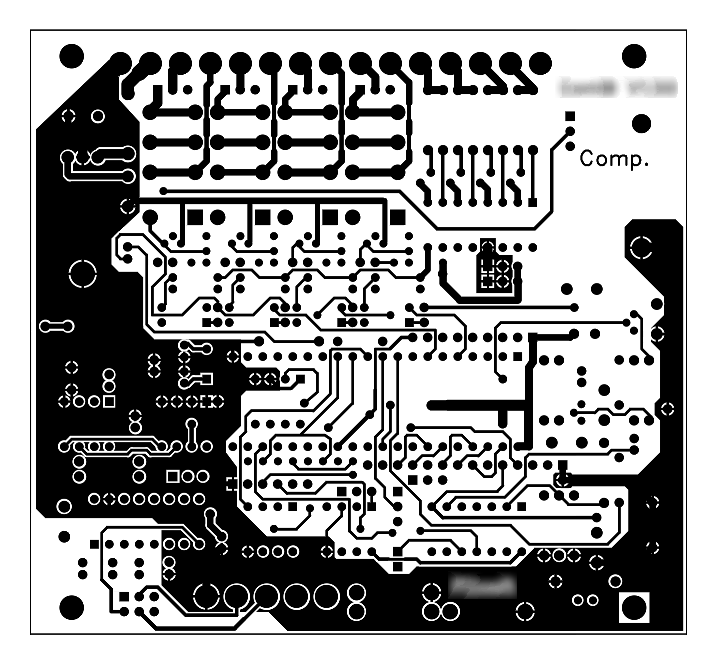

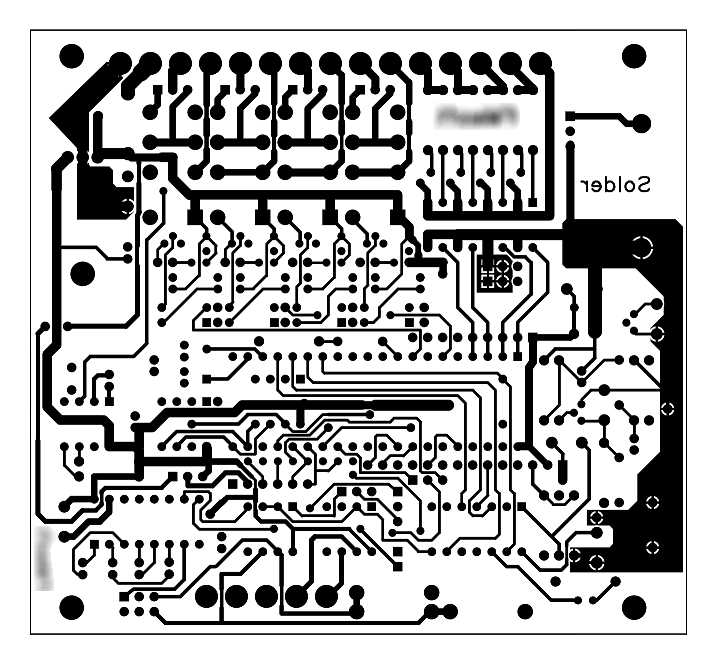

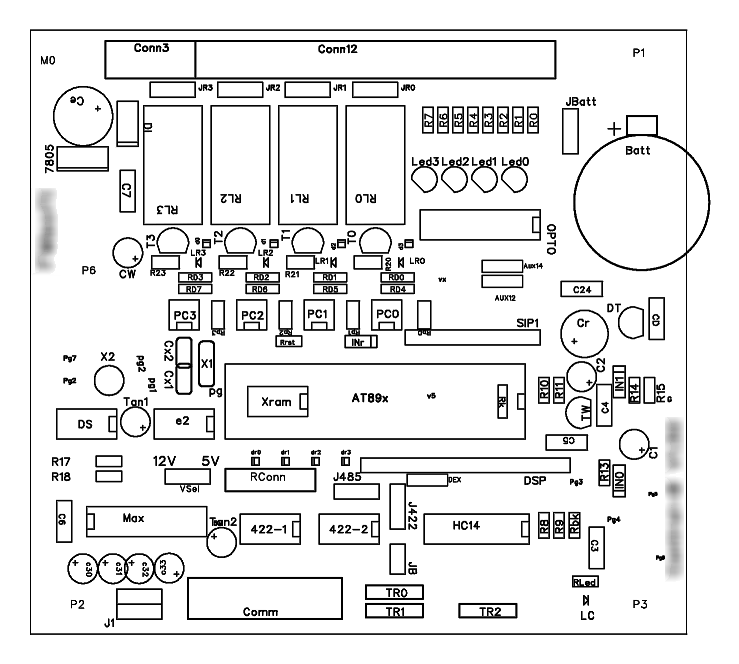

Layers can be found here:

http://img.photobucket.com/albums/v4...copper.gif
http://img.photobucket.com/albums/v4...copper.gif
http://img.photobucket.com/albums/v4...p_silk.gif

OK. I agree that's a horrible design survived from the through-hole age.

Can hear the jury by now: "You're found guilty!"
